Polyester Woven Mesh

MAISHI MFG. is the leading supplier of Polyester Screen Printing Mesh which is also called bolting cloth. It is a type of woven polyester which is extracted from yarn by using a particular mechanism of heating of the polyester. Thus, the heater form is made in a single filament threaded form. The extruded form of thread filament is manufactured and is spun according to the required diameter. The conventional polyester screen material is made a bit longer by extending the monofilament polyester printing mesh.

From coarse mesh to fine mesh, from separation & filtration to screen printing, we're able to offer full solutions for our clients in different industries.

And benefit from our efficient production arrangement, we always have more inventory than most factories, so our lead time is always leading our industry.

Full Inspection

Full inspection for all the orders we manufacture

Clearly Tolerance

All the inspection tolerance is open to our clients

Perfect Service

Perfect service from pre-sale to after-sale

More About Polyester Woven Mesh

Click on the tabs below to learn more about Polyester Woven Mesh!

Type	Mesh Count	Aperture	Thread Diameter	Opening	Thickness	Inkthrough Volumethroretically	Tensile Strength


	(mesh/inch)	(micron)	(micron)	(%)	(micron)	(cm³/m²)	(N/CM)
6-400	15	1300	400	65	780-810	560	110
7-350	18	1067	350	55	585-598	389	110
8-300	20	970	300	58	550-580	406	100
10-250	25	700	250	49	508-518	355	85
12-140	30	685	140	68	273-275	189	65
12-150	30	696	150	67	270-274	180	50
12-250	30	597	250	53	495-505	305	85
15-250	38	467	250	49	489-501	213	83
16-120	40	515	120	65	225-230	147	62
16-140	40	461	140	58	230-238	139	65
16-150	40	485	150	58	282-292	164	65
16-200	40	435	200	44	329-341	151	70
16-250	40	356	250	34	420-425	145	85
18-150	45	410	150	53	255-275	138	50
20-80	50	399	80	69	132-142	92	36
20-100	50	380	100	62	165-172	105	50
20-150	50	358	150	50	252-257	126	55
21-80	55	378	80	68	125-140	125	36
21-150	55	330	150	46	260-280	123	55
24-80	60	343	80	65	132-136	86	42
24-100	60	316	100	57	188-195	109	49
24-120	60	303	120	51	230-240	104	51
24-150	60	273	150	42	249-255	100	60
28-80	70	262	80	58	130-138	79	40
28-100	70	243	100	50	165-174	85	45
30-120	75	213	120	41	235-245	102	52
32-64	80	236	64	60	105-110	68	31
32-80	80	237	80	55	120-130	110	40
32-100	80	212	100	46	145-155	69	49
34-100	85	198	100	44	165-172	71	50
36-80	90	202	80	51	145-150	70	45
36-90	90	185	90	45	155-165	65	49
36-100	90	182	100	41	175-185	60	51
39-55	100	195	55	56	88-96	55	24
39-80	100	176	80	48	148-153	73	31
39-100	100	154	100	37	168-173	60	42
43-80	110	147	80	41	125-131	53	31
47-55	120	152	55	51	88-96	48	29
48-70	120	135	70	41	108-120	46	30
51-55	51	134	55	50	92-98	47	28
53-48	135	139	48	55	85-90	48	26
53-55	135	128	55	47	88-96	45	29
54-64	137	115	64	39	95-105	39	30
54-70	137	108	70	34	108-120	40	31
58-55	145	118	55	38	89-94	40	30
59-45	150	124	45	54	83-87	29	31
59-48	150	121	48	51	85-89	43	29
59-55	150	114	55	45	85-90	38	30
59-64	150	105	64	36	103-108	39	25
61-48	155	115	48	49	76-83	41	30
62-64	155	105	64	42	98-107	33	31
64-45	160	105	48	43	73-82	37	30
64-53	160	105	53	44	78-86	34	30
64-55	160	98	55	38	85-95	36	30
64-64	160	88	64	30.0	95-105	30.7	31.0
68-55	175	85	55	34.0	85-95	29.2	30.0
68-64	175	78	64	29.0	108-110	32.0	32.0
72-48	180	90	48	36.0	75-84	33.1	28.0
72-55	180	80	55	33.0	89-95	31.0	29.0
77-48	195	81	48	34.0	80-85	29.0	28.0
77-55	195	75	55	28.0	86-92	26.6	29.0
80-48	200	72	48	33.0	75-84	28.7	27.0
90-48	230	56	48	25.0	77-85	23.5	25.0
100-40	250	58	40	37.0	66-73	21.3	28.5
110-40	280	52	40	33.0	78-85	20.5	29.6
120-31	305	49	31	36.0	50-55	19.5	29.0
120-34	305	45	34	30.5	52-57	18.4	30.5
120-40	305	37	40	21.0	65-67	13.5	32.0
130-34	330	42	34	30.0	50-55	16.5	31.0
130-40	330	31	40	17.0	63-68	12.0	32.0
140-31	355	34	31	25.0	48-53	13.0	29.0
140-34	355	31	34	19.5	56-62	14.4	31.0
150-31	380	36	31	29.0	43-47	13.1	30.5
150-34	380	30	34	20.5	56-62	14.9	30.5
165-31	420	31	31	22.5	52-58	12.5	28.9

Item No.	Mesh Opening (um)	Open Area %	Thickness (um)	Mesh/ cm	Mesh/ inch	Thread Diameter (um)	Weight (g/square meter)	Weight (oz/square yard	Air Permeability 20mm WG (litre/square meter per second)


PET1820	1820	74	570	5	12	300	76	2.2	12380
PET1300	1300	58	760	6	15	400	168	5.0	18790
PET1060	1060	57	665	7	18	350	154	4.6	10056
PET1020	1020	65	475	8	20	250	88	2.6	16830
PET970	970	58	570	8	20	300	126	3.7	10575
PET770	770	57	475	10	25	250	109	3.2	15380
PET730	730	74	228	12	30	120	30	0.9	16534
PET700	700	68	285	12	30	150	47	1.4	10038
PET650	650	58	380	12	30	200	84	2.5	9780
PET600	600	50	475	12	30	250	131	3.9	9350
PET470	470	49	380	15	38	200	106	3.1	9103
PET420	420	39	475	15	38	250	166	4.9	8093
PET520	520	66	228	16	40	120	40	1.2	9415
PET500	500	61	266	16	40	140	55	1.6	9380
PET490	490	58	285	16	40	150	63	1.9	9361
PET440	440	47	380	16	40	200	112	3.3	9340
PET410	410	54	285	18	45	150	71	2.1	9680
PET420	420	68	171	20	50	90	28	0.8	9763
PET410	410	65	190	20	50	100	35	1	9631
PET360	360	50	285	20	50	150	79	2.3	9080
PET380	380	68	152	22	55	80	25	0.7	9431
PET340	340	55	228	22	55	120	55	1.6	9488
PET310	310	46	285	22	55	150	87	2.6	8510
PET340	340	66	152	24	60	80	27	0.8	8384
PET320	320	58	190	24	60	100	42	1.2	8531
PET300	300	51	228	24	60	120	61	1.8	7491
PET270	270	42	285	24	60	150	95	2.8	7930
PET300	300	55	190	26	65	100	46	1.3	8836
PET260	260	52	190	28	70	100	49	1.4	9230
PET220	220	42	228	30	75	120	76	2.2	7830
PET250	250	64	122	32	80	64	23	0.7	8535
PET240	240	56	152	31	80	80	36	1.1	8150
PET220	220	47	190	31	80	100	56	1.7	7938
PET200	200	51	152	35	90	80	40	1.2	8003
PET180	180	42	190	35	90	100	63	1.9	7738
PET200	200	61	105	39	100	55	21	0.6	7850
PET190	190	56	122	39	100	64	29	0.8	7920
PET180	180	52	133	39	100	70	34	1.0	7358
PET170	170	47	152	39	100	80	45	1.3	8356
PET150	150	43	152	43	110	80	49	1.5	6620
PET160	160	55	105	47	120	55	25	0.8	6341
PET150	150	49	122	47	120	64	34	1.0	6538
PET140	140	45	133	47	120	70	41	1.2	5450
PET140	140	55	91	53	135	48	22	0.6	5539
PET133	133	50	105	53	135	55	29	0.8	5339
PET121	121	43	122	54	137	64	39	1.2	6438
PET115	115	39	133	54	137	70	47	1.4	4831
PET120	120	47	105	57	145	55	31	0.9	6483
PET124	124	54	86	59	150	45	21	0.6	7391
PET121	121	51	91	59	150	48	24	0.7	6483
PET114	114	46	105	59	150	55	32	0.9	5763
PET105	105	39	122	59	150	64	43	1.3	7150
PET116	116	50	91	61	155	48	25	0.7	5731
PET109	109	44	105	61	155	55	33	1.0	5513
PET100	100	37	122	61	155	64	44	1.3	5389
PET111	111	49	91	63	160	48	26	0.8	5293
PET104	104	43	105	63	160	55	34	1	6318
PET95	95	36	122	63	160	64	46	1.4	4513
PET90	90	39	105	69	175	55	37	1.1	4655
PET81	81	31	122	69	175	64	50	1.5	4799
PET93	93	44	91	71	180	48	29	0.9	5736
PET86	86	37	105	71	180	55	38	1.1	5552
PET82	82	40	91	77	195	48	31	0.9	7381
PET75	75	33	105	77	195	55	41	1.2	4980
PET79	79	39	91	79	200	48	32	1	4897
PET62	62	32	91	91	230	48	37	1.1	5318
PET62	62	37	76	98	250	40	28	0.8	5099
PET51	51	31	76	110	280	40	31	0.9	4109
PET52	52	39	59	120	305	31	21	0.6	4633
PET49	49	35	65	120	305	34	25	0.7	3512
PET43	43	27	76	120	305	40	34	1	3231
PET43	43	31	65	130	330	34	27	0.8	3611
PET41	41	32	59	140	355	31	24	0.7	3608
PET38	38	28	65	140	355	34	29	0.8	3150
PET36	36	29	59	150	380	31	26	0.8	3638
PET33	33	24	65	150	380	34	31	0.9	2910
PET29	29	24	60	165	420	31	28	0.8	2860
PET25	25	26	55	180	460	27	23	0.7	2180

For Printing

Garment printing

MAISHI mesh can ensure the most beautiful design combines your level of experience. MAISHI mesh can make your printing magnificent, colorful, gorgeous and high quality. In addition, screen printing have excellent color brightness and opacity. The creative creation is very fascinating. The screen printing T-shirt (far beyond) is not just a simple work clothes. It can be also used in elegant, gorgeous, lifelike, touch and personality clothes.

Ceramic Printing/Glaze Printing

With the colorful gorgeous details of using gold, platinum, allowing the ceramic printing products to form a piece of their own work to help you achieve the best and most beautiful print design.

PCB Printing

Reliability and predictability of print reproduction are the two key requirements for PCB printing, stainless steel and polyester are all suitable for it.

Glass printing

Glass screen printing have the features of high precision, clear picture and so on. No matter it is a simple block color pattern, full-color pattern or with excessive color patterns, it can be printed once completed. No plate, no copy and repeat sets of color. The glass screen printing can print the beautiful and realistic color, which the image is waterproof and sunscreen. You can choose different mesh according to your required pattern to achieve the best printing results.

Metal

The stainless steel mesh are tested in our own laboratory for compliance technical specifications, to ensure that every mesh with the highest standards.

Dash Board

Highly accurate, precision weave control, high abrasion resistance makes the benefits to choose stainless steel wire cloth for dash board printing.

Display Device

Stainless steel screen printing mesh used for display service screen printing, no fade, no blocking, uniform phosphor layer, smooth surface and high luminous efficiency.

Membrane Switch

Printing membrane switch requires skill and control over the process, fine mesh counts in the range of 260-355 threads per inch for face panels, 173-230 for conductive silver pastes and 63-110 for printing pressure sensitive adhesives.

For Filtration

Water Filtration

MAISHI offers filter fabrics for fine chemicals,catalysts,pigments and coatings,metal and other products screening and filtration.

Polyester filter mesh is a fabric woven for separating solid particles from gas, water or other materials. Made of quality polyester monofilament yarns, our range of polyester filter mesh is characterized by stable physical property which makes it ideal for printing and filtering industry. All the meshes are semi-permeable woven with appropriate apertures based on your requirements for filtering certain sized particles.

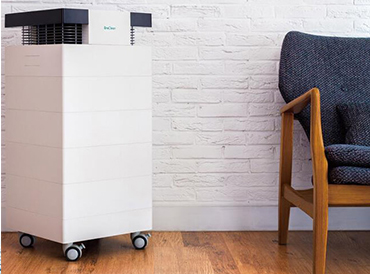

Air Filtration

MAISHI offers filter fabrics for fine chemicals, catalysts, pigments and coatings, metal and other products screening and filtration.

They are used to clean the air conditioning system, interception of large particles in the atmosphere particles to prevent its entry into the air condition system.

Accurate filter accuracy, high efficiency, highporosity, low pressure loss, large filtration area.

Mesh Count

"Mesh count" represents the number of threads with per inch or per cm. conversion method as below:

Mesh per inch=25.4÷(d+w)

Mesh per cm=10÷(d+w)

(For "d" and "w", please refer to the drawing in the right)

Example:

For 43T-80, wire diameter is 0.08mm, mesh opening is 0.15mm, what's its

mesh count?

① Mesh per inch=25.4÷(0.08+0.15)=110 mesh per inch

② Mesh per cm=10÷(d+w)=43 mesh per cm

Opening area

Opening area is calculated from the mesh opening and wire diameter. Calculation method as below:

Opening area(%)=w²÷(w+d)²

Example:

For 43T-80, wire diameter is 0.08mm, mesh opening is 0.15mm, what's its opening area?

Opening area(%)=0.15*0.15÷(0.15+0.08)²*100%=42.5%

The formula for calculating theoretical ink volume

Vth = (W——W + d)²X D

Vth = theoretical ink volume (cm³/m²):

W = mesh opening in μm

d = wire diameter in μm

D = cloth thickness in μm

For example:

80T-48, 200 mesh/inch, wire diameter 48μm, cloth thickness 80μm, mesh opening 72μ

Vth = (72——72 + 48)²X 80 = 28.8 cm³/m²

The formula for calculating the finest line width

K(μm) = 2S(μm) + R(μm) “K” is the finest width of the finest printing ink line “S” is thread diameter “R” is mesh opening

For example:

80T-48, thread diameter 48μm, mesh opening 72μ

K= 2S + R =168μm

Inspection process
