Stainless Steel Mesh

Stainless Steel Mesh

Stainless Steel Mesh

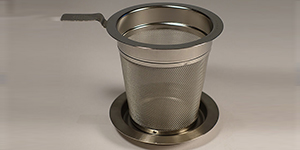

Stainless Steel Mesh is crafted from stainless steel wire woven on looms to create intricate patterns. With an extensive selection of stainless steel materials and wire gauges, coupled with various weaving techniques, the versatility of Stainless Steel Mesh knows no bounds. It is widely utilized in applications such as sifting, filtration, printing, safeguarding, and much more. We offer a comprehensive range of standard Stainless Steel Mesh specifications and are also equipped to tailor our production to meet unique customer demands.

  • Raw material check
  • Meterial preparation
  • Finish dia.warping beam

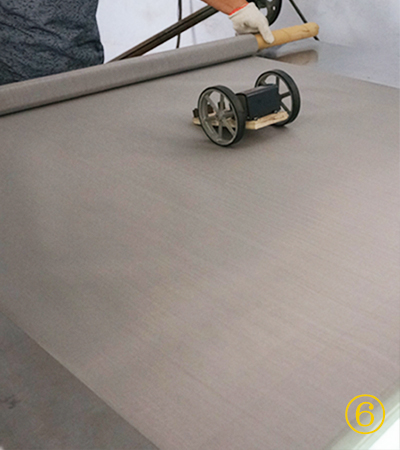

  • Length check
  • Surface check
  • Mesh weaving
  • Material check
  • Packing
  • Packing into box

Full Inspection

Full inspection for all the orders we manufacture

Clearly Tolerance

All the inspection tolerance is open to our clients

Perfect Service

Perfect service from pre-sale to after-sale

More About Stainless Steel Mesh

Click on the tabs below to learn more about Stainless Steel Mesh!
  • Filtration Specs
    • Plain & Twill Weave

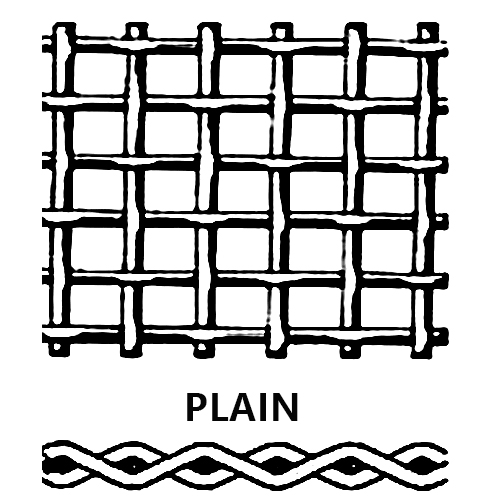

      In the plain weave pattern, each weft wire passes alternately over and under the warp wire and vice versa It is the most widely available pattern and typically incorporates wire of the same diameter in both directions Plain weaves are considered to be the most stable mesh form and used in many applications throughout manufacturing industry.




      The twill pattern follows same principle as plain weave, but each passes
      alternately under and over two warp wires and vice versa. As a consequence of the woven path, the strand is deformed less during weaving, which not only allows a larger diameter wire to be used, but also results in a stronger structure when compared to the plain weave counterpart.

      Mesh
      per inch      		 Aperture
      width
      W      		 Wire
      diameter
      d      		 Wire
      diameter
      d      		 Opening area
      A      		 Weight
      G      		 Special Woven Wire Cloth
      Test Sieves
      DIN ISO 3310-1Nominal aperture  width ASTME USA Market
      11-1 Grades
      - mm mm inch (%) kg/㎡ W μm No. Mesh
      635 0.02 0.02 0.0008 25 0.13 20 635
      500 0.025 0.025 0.001 25 0.16 25 500 500
      450 0.032 0.025 0.001 32 0.14
      500 0.034 0.016 0.0006 46 0.07
      400 0.036 0.028 0.0011 32 0.16
      400 0.03 0.0012 30 0.17 36
      400 0.038 0.023 0.0009 39 0.11
      400 0.025 0.001 36 0.13
      350 0.04 0.032 0.0013 31 0.18 40
      360 0.042 0.028 0.0011 36 0.14
      325 0.036 0.0014 29 0.21 325
      400 0.045 0.018 0.0007 51 0.07
      400 0.02 0.0008 48 0.08
      325 0.032 0.0013 34 0.017 45 325
      325 0.05 0.028 0.0011 41 0.13
      325 0.03 0.0012 39 0.14
      300 0.036 0.0014 34 0.19 50
      280 0.053 0.036 0.0014 35 0.18 53 270
      270 0.04 0.0016 32 0.22 270
      325 0.056 0.023 0.0009 50 0.09
      325 0.025 0.001 48 0.1
      300 0.03 0.0012 42 0.13
      270 0.036 0.0014 37 0.18 270
      280 0.06 0.03 0.0012 44 0.13
      280 0.032 0.0013 43 0.14
      325 0.062 0.016 0.0006 63 0.04
      250 0.063 0.036 0.0014 40 0.17
      250 0.04 0.0014 37 0.2 250
      230 0.045 0.0018 34 0.24 63 230
      290 0.067 0.02 0.0008 59 0.06
      240 0.04 0.0016 39 0.19
      250 0.071 0.03 0.0012 49 0.11
      210 0.05 0.002 34 0.26 71
      200 0.056 0.0022 31 0.31 200
      230 0.075 0.036 0.0014 46 0.15
      200 0.05 0.002 36 0.25 75 200
      200 0.053 0.0021 34 0.28 200
      200 0.08 0.05 0.002 38 0.24
      190 0.056 0.0022 35 0.29 80
      160 0.08 0.0032 25 0.51
      230 0.085 0.028 0.0011 57 0.09
      230 0.03 0.0012 55 0.1
      200 0.04 0.0016 46 0.16
      180 0.056 0.0022 36 0.28 180
      220 0.09 0.025 0.001 61 0.07
      200 0.04 0.0016 48 0.16
      180 0.05 0.002 41 0.23
      160 0.071 0.0028 31 0.4
      180 0.095 0.045 0.0018 46 0.18
      150 0.075 0.003 31 0.42
      200 0.1 0.025 0.001 64 0.06
      170 0.05 0.002 44 0.21
      150 0.067 0.0026 36 0.34 150
      150 0.071 0.0028 34 0.37 100
      165 0.106 0.05 0.002 46 0.2
      150 0.06 0.0024 41 0.28
      145 0.071 0.0028 36 0.36 106 140
      140 0.112 0.071 0.0028 37 0.35
      130 0.08 0.0032 34 0.42 112
      165 0.118 0.036 0.0014 59 0.11
      120 0.095 0.0037 31 0.54 120
      160 0.125 0.036 0.0014 60 0.1
      120 0.09 0.0035 34 0.48 125 120
      135 0.132 0.056 0.0022 49 0.21
      140 0.14 0.045 0.0018 57 0.14
      125 0.063 0.0025 48 0.25
      120 0.067 0.0025 46 0.28
      110 0.09 0.0035 37 0.45
      105 0.1 0.004 34 0.53 140
      100 0.112 0.0045 31 0.63 100
      130 0.15 0.045 0.0018 59 0.13
      120 0.063 0.0025 50 0.24
      100 0.1 0.004 36 0.51 150 100
      100 0.112 0.0045 33 0.61
      110 0.06 0.071 0.0028 48 0.28
      105 0.075 0.003 46 0.3
      105 0.08 0.0032 44 0.34
      100 0.1 0.004 38 0.49
      94 0.112 0.0045 35 0.59 160
      90 0.125 0.005 32 0.7
      100 0.18 0.08 0.0032 48 0.31
      94 0.09 0.0035 44 0.38
      87 0.112 0.0045 38 0.55
      85 0.125 0.005 35 0.65 180 80
      80 0.14 0.0055 32 0.78 80
      100 0.19 0.063 0.0025 56 0.2
      90 0.09 0.0035 46 0.37
      88 0.2 0.09 0.0035 48 0.35
      84 0.1 0.004 44 0.42
      80 0.125 0.005 38 0.61
      75 0.14 0.0055 35 0.73 200
      70 0.16 0.0063 31 0.9
      64 0.2 0.008 25 1.27
      100 0.212 0.04 0.0016 71 0.08
      84 0.09 0.0035 49 0.34
      70 0.14 0.0055 36 0.71 212 70
      68 0.16 0.0063 32 0.87
      100 0.224 0.028 0.0011 79 0.04
      100 0.03 0.0012 78 0.05
      84 0.08 0.0032 54 0.27
      80 0.095 0.0037 49 0.36
      78 0.1 0.004 48 0.39
      72 0.125 0.005 41 0.57
      66 0.16 0.0063 34 0.85 224
      60 0.2 0.008 28 1.2
      78 0.23 0.095 0.0037 50 0.35
      85 0.236 0.063 0.0025 62 0.17
      78 0.09 0.0035 52 0.32
      76 0.095 0.0037 51 0.35
      60 0.19 0.0075 31 1.08 60
      74 0.25 0.095 0.0037 53 0.33
      72 0.1 0.004 51 0.36
      70 0.112 0.0045 48 0.44
      70 0.125 0.005 44 0.53
      65 0.14 0.0055 41 0.64
      62 0.16 0.0063 37 0.79 250 60
      56 0.2 0.008 31 1.13
      72 0.258 0.095 0.0037 54 0.32
      80 0.265 0.05 0.002 71 0.1
      80 0.053 0.0021 69 0.11
      70 0.095 0.0037 55 0.32
      70 0.1 0.004 53 0.35
      66 0.112 0.0045 49 0.42
      62 0.14 0.0055 43 0.61
      60 0.16 0.0063 39 0.76 60
      82 0.28 0.03 0.0012 82 0.04
      80 0.04 0.0016 77 0.06
      70 0.08 0.0032 60 0.23
      66 0.1 0.004 54 0.33
      64 0.112 0.0045 51 0.41
      62 0.125 0.005 48 0.49
      58 0.16 0.0063 40 0.74
      55 0.18 0.0071 37 0.89 280
      50 0.224 0.009 31 1.26 50
      70 0.29 0.075 0.003 63 0.2
      63 0.112 0.0045 52 0.4
      62 0.3 0.1 0.004 56 0.32
      62 0.112 0.0045 53 0.39
      51 0.2 0.008 36 1.02 300 50
      64 0.315 0.08 0.0032 64 0.21
      60 0.1 0.004 58 0.31
      60 0.112 0.0045 54 0.37
      56 0.14 0.0055 48 0.55
      54 0.16 0.0063 44 0.68
      52 0.18 0.0071 40 0.83
      50 0.2 0.008 37 0.99 315 50
      58 0.325 0.112 0.0045 55 0.36
      58 0.325 0.1 0.004 59 0.29
      55 0.125 0.005 53 0.43
      54 0.14 0.0055 50 0.52
      56 0.355 0.1 0.004 61 0.28
      53 0.125 0.005 55 0.41
      54 0.14 0.0055 50 0.52
      56 0.355 0.1 0.004 61 0.28
      53 0.125 0.005 55 0.41
      54 0.14 0.0055 50 0.52
      56 0.355 0.1 0.004 61 0.28
      53 0.125 0.005 55 0.41
      52 0.14 0.0055 51 0.5
      50 0.16 0.0063 48 0.63
      48 0.18 0.0071 44 0.77
      44 0.224 0.009 38 1.1 355 45
      54 0.375 0.1 0.004 62 0.27
      51 0.125 0.005 56 0.4
      50 0.14 0.0055 53 0.48
      50 0.4 0.112 0.0045 61 0.31
      48 0.125 0.005 58 0.38
      48 0.14 0.0055 55 0.46
      44 0.18 0.0071 48 0.71
      42 0.2 0.008 44 0.85
      40 0.224 0.009 41 1.02
      40 0.25 0.01 38 1.22 400 40
      37 0.28 0.011 35 1.46
      48 0.425 0.112 0.0045 63 0.3
      46 0.125 0.005 60 0.36
      45 0.14 0.0055 57 0.44
      40 0.2 0.008 46 0.81
      40 0.224 0.009 43 0.98
      38 0.25 0.01 40 1.18
      36 0.28 0.011 36 1.41 425 40
      35 0.3 0.012 34 1.58
      46 0.45 0.112 0.0045 64 0.28
      44 0.125 0.005 61 0.35
      44 0.14 0.0055 58 0.42
      40 0.18 0.0071 51 0.65
      40 0.2 0.008 48 0.78
      36 0.25 0.01 41 1.13
      35 0.28 0.011 35 1.36
      50 0.475 0.03 0.0012 88 0.02 450
      43 0.125 0.005 63 0.33
      42 0.14 0.0055 60 0.4
      40 0.16 0.0063 56 0.51
      42 0.5 0.112 0.0045 67 0.26
      41 0.125 0.005 64 0.32
      40 0.14 0.0055 61 0.39
      38 0.16 0.0063 57 0.49
      36 0.2 0.008 51 0.73 30
      35 0.224 0.009 48 0.88
      34 0.25 0.01 44 1.06
      32 0.28 0.011 41 1.28
      32 0.3 0.012 39 1.43
      31 0.315 0.0125 38 1.55 500 435
      28 0.4 0.016 31 2.26
      39 0.53 0.125 0.005 65 0.3
      36 0.16 0.0063 59 0.47
      36 0.18 0.0071 56 0.58
      34 0.224 0.009 49 0.85
      37 0.56 0.125 0.005 67 0.29
      36 0.14 0.0055 64 0.36
      35 0.16 0.0063 60 0.45
      32 0.224 0.009 51 0.81
      31 0.25 0.01 48 0.98
      30 0.28 0.011 44 1.19 30
      29 0.315 0.0125 41 1.44
      28 0.355 0.014 37 1.75 560
      34 0.6 0.16 0.0063 62 0.43
      32 0.2 0.008 56 0.64
      31 0.224 0.009 53 0.77
      30 0.25 0.01 50 0.93
      25 0.4 0.016 36 2.03 600
      32 0.63 0.16 0.0063 64 0.41
      30 0.224 0.009 54 0.75
      28 0.25 0.01 51 0.9
      28 0.28 0.011 48 1.09
      26 0.315 0.0125 44 1.33
      25 0.4 0.016 37 1.97 630 30
      30 0.67 0.16 0.0063 65 0.39
      30 0.18 0.0071 62 0.48
      20 0.6 0.024 28 3.6
      28 0.71 0.19 0.0075 62 0.51
      28 0.2 0.008 61 0.56
      27 0.224 0.009 58 0.68
      26 0.28 0.011 51 1.01
      25 0.315 0.0125 48 1.23
      24 0.355 0.014 44 1.5 24
      23 0.4 0.016 41 1.83
      22 0.45 0.018 37 2.22 710 25
      20 0.53 0.021 33 2.88
      27 0.75 0.2 0.008 62 0.53
      25 0.25 0.01 56 0.79
      24 0.315 0.0125 50 1.18
      22 0.4 0.016 43 1.77
      26 0.8 0.18 0.0071 67 0.42
      26 0.19 0.0075 65 0.46
      25 0.2 0.008 64 0.51
      24 0.25 0.01 58 0.76 24
      23 0.315 0.0125 51 1.13
      21 0.4 0.016 44 1.69
      20 0.45 0.018 41 2.06 800
      20 0.5 0.02 38 2.44
      18 0.63 0.025 31 3.52
      24 0.85 0.19 0.0075 67 0.44
      24 0.2 0.008 66 0.48
      24 0.224 0.009 63 0.59
      20 0.4 0.016 46 1.63 20
      20 0.45 0.018 43 1.98
      19 0.5 0.02 40 2.35 850 20
      23 0.9 0.2 0.008 67 0.46
      22 0.224 0.009 64 0.57
      22 0.25 0.01 61 0.69
      21 0.315 0.0125 55 1.04
      20 0.355 0.014 51 1.28 20
      20 0.4 0.016 48 1.56
      18 0.5 0.02 41 2.27 900
      22 0.95 0.19 0.0075 69 0.4
      22 0.2 0.008 68 0.44
      22 0.224 0.009 65 0.54
      20 0.315 0.0125 56 1
      21 1 0.224 0.009 67 0.52
      20 0.25 0.01 64 0.64
      20 0.28 0.011 61 0.78
      19 0.315 0.0125 58 0.96
      19 0.355 0.014 54 1.18
      18 0.4 0.016 51 1.45
      17 0.5 0.02 44 2.12
      16 0.56 0.022 41 2.55 1 18
      16 0.63 0.025 38 3.09
      14 0.8 0.032 31 4.52
      20 1.06 0.224 0.009 68 0.5
      19 0.25 0.01 65 0.61
      15 0.63 0.025 39 2.98
      18 1.12 0.25 0.01 67 0.58
      18 0.315 0.0125 61 0.88
      16 0.45 0.018 51 1.64 16
      16 0.5 0.02 48 1.96
      15 0.56 0.022 44 2.37 1.12
      15 0.63 0.025 41 2.88
      18 1.18 0.224 0.009 71 0.45
      16 0.4 0.016 56 1.29
      15 0.5 0.02 49 1.89
      14 0.63 0.025 43 2.78 1.18 16
      17 1.25 0.25 0.01 69 0.53
      17 0.28 0.011 67 0.65
      16 0.315 0.0125 64 0.81
      16 0.355 0.014 61 1
      15 0.4 0.016 57 1.23
      15 0.5 0.02 51 1.81
      14 0.56 0.022 48 2.2
      14 0.63 0.025 44 2.68 1.25
      12 0.8 0.032 37 3.96
      16 1.32 0.224 0.009 73 0.41
      16 0.28 0.011 68 0.62
      14 0.5 0.02 53 1.74 14
      13 0.63 0.025 46 2.58
      12 0.8 0.032 39 3.83
      16 1.4 0.224 0.009 74 0.39
      16 0.25 0.01 72 0.48
      15 0.28 0.011 69 0.59
      15 0.315 0.0125 67 0.73
      14 0.45 0.018 57 1.39
      13 0.56 0.022 51 2.03
      13 0.63 0.025 47 2.48
      12 0.71 0.028 44 3.03 1.4 14 12
      11 0.9 0.035 37 4.47
      12 1.5 0.56 0.022 53 1.93 12
      32 0.63 0.16 0.0063 64 0.41
      30 0.224 0.009 54 0.75
      28 0.25 0.01 51 0.9
      28 0.28 0.011 48 1.09
      26 0.315 0.0125 44 1.33
      25 0.4 0.016 37 1.97 630 30
      30 0.67 0.16 0.0063 65 0.39
      30 0.18 0.0071 62 0.48
      20 0.6 0.024 28 3.6
      28 0.71 0.19 0.0075 62 0.51
      28 0.2 0.008 61 0.56
      27 0.224 0.009 58 0.68
      26 0.28 0.011 51 1.01
      25 0.315 0.0125 48 1.23
      24 0.355 0.014 44 1.5 24
      23 0.4 0.016 41 1.83
      22 0.45 0.018 37 2.22 710 25
      20 0.355 0.014 51 1.28 20
      12 0.63 0.025 50 2.37
      11 0.71 0.028 46 2.9
      14 1.6 0.224 0.009 77 0.35
      14 0.28 0.011 72 0.53
      13 0.315 0.0125 67 0.82
      13 0.355 0.014 67 0.82
      12 0.5 0.02 58 1.51
      11 0.63 0.025 51 2.26
      11 0.71 0.028 48 2.77
      11 0.8 0.032 44 3.39 1.6
      9 3/4 1 0.032 38 4.88
      13 1.7 0.315 0.0125 71 0.63
      12 0.45 0.018 63 1.2
      11 0.63 0.025 53 2.16
      10 0.8 0.032 43 3.25 1.7 12
      9 3/4 0.9 0.035 43 3.96
      12 1.8 0.315 0.0125 72 0.6
      12 0.355 0.014 70 0.74
      11 0.5 0.02 61 1.38
      11 0.56 0.022 58 1.69
      10 0.63 0.025 55 2.07 10
      9 3/4 0.8 0.032 48 3.13 1.8
      9 1/2 0.9 0.035 44 3.81
      9 1 0.04 41 4.54
      11 1.9 0.4 0.016 68 0.88
      6 2.34 0.092 20 16.4
      11 2 0.25 0.01 79 0.35
      11 0.315 0.0125 75 0.54
      11 0.4 0.016 69 0.85
      10 0.5 0.02 64 1.27
      10 0.56 0.022 61 1.56
      9 2/3 0.63 0.025 58 1.92 2 10
      8 3/4 0.9 0.035 48 3.55
      8 1/2 1 0.04 44 4.23
      7 3/4 1.25 0.05 38 6.11
      7 1/2 1.4 0.055 35 7.32
      10 2.12 0.45 0.018 68 1
      9 3/4 0.5 0.02 65 1.21
      9 0.71 0.028 56 2.26
      10 2.24 0.355 0.014 75 0.62
      10 0.4 0.016 72 0.77
      9 1/2 0.45 0.018 69 0.96
      9 0.56 0.022 64 1.42
      9 0.63 0.025 61 1.76
      8 0.9 0.035 51 3.28 2.24
      8 1 0.04 48 3.92
      8 2.6 0.8 0.032 56 2.57
      7 3/4 0.9 0.035 52 3.16
      7 1/2 1 0.04 49 3.78 2.36 8
      8 3/4 2.5 0.4 0.016 74 0.7
      8 1/2 0.5 0.02 69 1.06
      8 0.63 0.025 64 1.61
      8 0.71 0.028 61 1.99 8
      7 1/4 1 0.04 51 3.63 2.5
      6 3/4 1.25 0.05 44 5.29
      19 0.25 0.01 65 0.61
      15 0.63 0.025 39 2.98
      18 1.12 0.25 0.01 67 0.58
      18 0.315 0.0125 61 0.88
      16 0.45 0.018 51 1.64 16
      16 0.5 0.02 48 1.96
      15 0.56 0.022 44 2.37 1.12
      15 0.63 0.025 41 2.88
      18 1.18 0.224 0.009 71 0.45
      16 0.4 0.016 56 1.29
      15 0.5 0.02 49 1.89
      14 0.63 0.025 43 2.78 1.18 16
      17 1.25 0.25 0.01 69 0.53
      17 0.28 0.011 67 0.65
      16 0.315 0.0125 64 0.81
      16 0.355 0.014 61 1
      15 0.4 0.016 57 1.23
      15 0.5 0.02 51 1.81
      8 2.65 0.5 0.02 70 1.01
      8 0.56 0.022 68 1.24
      8 2.8 0.4 0.016 77 0.64
      7 3/4 0.5 0.02 72 0.96
      7 0.8 0.032 60 2.26 7
      6 1/2 1.12 0.045 51 4.06 2.8
      6 1.4 0.055 44 5.93
      7 3.15 0.45 0.018 77 0.71
      7 0.5 0.02 74 0.87
      6 3/4 0.56 0.022 72 1.07
      6 3/4 0.63 0.025 69 1.33
      6 1/2 0.8 0.032 64 2.06
      6 1 0.04 58 3.06
      6 1.12 0.045 54 3.73
      5 3/4 1.25 0.05 4.51 3.15
      5 1/2 1.4 0.055 48 5.47
      5 1/4 1.6 0.063 44 6.84
      6 3.35 0.9 0.035 62 2.42 6
      5 1/2 1.25 0.05 53 4.31 3.35 6
      6 1/4 3.55 0.5 0.02 77 0.78
      6 0.63 0.025 72 1.21 4
      6 0.71 0.028 69 1.5
      5 3/4 0.9 0.035 64 2.31
      5 1/2 1 0.04 61 2.79
      5 1/4 1.25 0.05 55 4.13 3.55
      5 1.4 0.055 51 5.03
      5 1.6 0.063 48 6.31
      4 1/2 2 0.08 41 9.15
      5 1/2 4 0.5 0.02 79 0.71
      5 1/2 0.63 0.025 75 1.09
      5 3/8 0.71 0.028 72 1.36
      0.8 0.032 69 1.69
      5 1 0.04 64 2.54
      4 3/4 1.25 0.05 58 3.78
      4 3/4 1.4 0.055 55 4.61 4 5
      4 1/2 1.6 0.063 51 5.81
      4 1/4 2 0.08 44 8.47
      3 3/4 2.5 0.1 38 12.21
      4 2/3 4.5 1 0.04 67 2.31
      4 1/2 1.25 0.05 61 3.45
      4 1/3 1.4 0.055 58 4.22 4.5
      4 1/4 1.5 0.059 56 4.67
      4 1.8 0.071 51 6.53
      3 2/3 2.5 0.1 41 11.34
      4 1/3 4.75 1.12 0.045 65 2.71
      4 1.6 0.063 56 5.12 4.75 4 4
      4 1/2 5 0.56 0.022 81 0.72
      4 1/2 0.71 0.028 77 1.12
      0.9 0.035 72 1.74
      5 1 0.04 69 2.12
      4 1.25 0.05 64 3.18 4
      4 1.4 0.055 61 3.89
      1.6 0.063 57 4.93 5
      3 3/4 1.8 0.071 54 6.05
      2 0.08 51 7.26
      3 3/4 5.6 1.25 0.05 67 2.9
      3 1/2 1.6 0.063 60 4.52 5.6 3 1/2
      1.8 0.071 57 5.56
      3 1/4 2.24 0.09 51 8.13
      6 1 0.04 73 1.81
      2 0.08 56 6.35
      2.5 0.1 50 9.34
      6.3 0.56 0.022 84 0.58
      3 1/2 1 0.04 74 1.74
      1.25 0.05 70 2.63
      3 1/4 1.4 0.055 67 3.23
      1.6 0.063 64 4.12
      1.8 0.071 60 5.08 6.3 1/4"
      3 2 0.08 58 6.12
      2.5 0.1 51 9.02
      6.7 0.9 0.035 78 1.35
      3 1.8 0.071 62 4.84 6.7 0.265"
      3 7.1 1.4 0.055 70 2.93
      1.8 0.071 64 4.62 7.1
      2.24 0.09 58 6.82
      2.5 0.1 55 8.27
      8 0.8 0.032 83 0.92
      1 0.04 79 1.41
      2 3/4 1.25 0.05 75 2.15
      1.4 0.055 72 2.65
      1.6 0.063 69 3.39
      2 1/2 2 0.08 64 5.08 8 5/16"
      2.5 0.1 58 7.56
      2 1/2 8.5 1.6 0.063 71 3.22
      3.55 0.14 50 13.28
      9 1.4 0.055 75 2.39 9
      2  1/24 2.24 0.09 64 5.67
      2.5 0.1 61 6.9
      2 3.55 0.14 51 12.75
      10 0.9 0.035 84 0.94
      1 0.04 83 1.15
      1.4 0.055 77 2.18
      1.6 0.063 74 2.8
      1.8 0.071 72 3.49
      2 0.08 69 4.23
      2 2.5 0.1 64 6.35 10
      2 11.2 1.6 0.063 77 2.54 2
      2.5 0.1 67 5.8 11.2 7/16"
      3.15 0.125 61 8.78
      12.5 1 0.04 86 0.94
      1.6 0.063 79 2.3
      2 0.08 74 3.5
      2.5 0.1 69 5.29 12.5 1/2"
      3.15 0.125 64 8.05
      13.2 2.8 0.11 68 6.22 13.2 0.530"
      3.15 0.125 65 7.71
      14 2.5 0.1 72 4.81
      2.8 0.11 69 5.93 14
      3.55 0.14 64 9.12
      15 2 0.08 78 2.99
      2.5 0.1 73 4.54
      3 0.12 69 6.35
      4 0.16 62 10.69
      16 1.25 0.05 86 0.92
      1.8 0.071 81 2.31
      3.15 0.125 70 6.58 16 5/8"

    • Plain Dutch Weave

      In the plain dutch weave, the diameter of the warp wire is larger than the weft, and the mesh is formed by weaving a limited number of warps with the maximum number of weft wires woven tightly together, producing a cloth with no readily visible apertures. This mesh is strong and stable, easy to clean with a good flow rate suitable for high pressure liquid/solid separation.

      Mesh No.(warp/
      inch & weft/inch)      		 Wire dia.(mm)
      (warp & weft)      		 Wire dia.(inch)
      (warp & weft)      		 Fineness of
      Filtering(micron)      		 Weight
      (kg/square meter)      		 Weight
      (lb/square yard)
      8/85 0.355/0.320 0.0140/0.01260 318-340 2.43  0.497
      10/70 0.600/0.350 0.0240/0.01400 300-325 3.04  0.622
      12/64 0.580/0.400 0.0230/0.01650 295-305 3.64  0.744
      14/88 0.500/0.330 0.0190/0.01200 195-205 3.15  0.644
      20/150 0.248/0.177 0.0098/0.00700 155-165 1.48  0.303
      24/110 0.355/0.250 0.0150/0.01000 145-155 2.70  0.552
      24/120 0.330/0.230 0.0130/0.00900 115-125 2.24  0.458
      30/150 0.230/0.180 0.0090/0.00700 95-105 1.60  0.327
      40/200 0.180/0.140 0.0070/0.00550 75-85 1.30  0.266
      50/250 0.140/0.114 0.0055/0.00450 55-65 1.00  0.204
      60/300 0.140/0.090 0.0055/0.00350 36-40 0.77  0.157
      70/400 0.120/0.065 0.0047/0.00256 36-40 0.67  0.138
      80/300 0.125/0.090 0.0049/0.00350 38-42 0.98  0.200
      80/400 0.125/0.071 0.0049/0.00280 38-42 0.81  0.166
            Special specifications can be customized upon customers' requirements
    • Twill Dutch Weave

      Twill Dutch Weave is produced with the weft wires packed together in the same principle as Plain Dutch Weave, but with double the number of weft wires woven in an over two, under two pattern. The weft wires overlie each other creating a sinuous path of filtration. The cloth is very robust with a smooth surface and the finer weft wires and smaller pore sizes provide excellent flow characteristics.

      Mesh No.(warp/
      inch & weft/inch)      		 Wire dia.(mm)
      (warp & weft)      		 Wire dia.(inch)
      (warp & weft)      		 Fineness of
      Filtering(micron)      		 Weight
      (kg/square meter)      		 Weight
      (lb/square yard)
      20×200 0.30000×0.26670 0.0135x0.0105 138 3.930  0.804
      24×220 0.30000×0.25000 0.0135x0.0100 105-112 3.980  0.814
      20× 50 0.24892x0.20000 0.0098x0.0079 98-105 2.810  0.575
      30×360 0.25000×0.15000 0.0100x0.0060 80-84 2.490  0.509
      40×560 0.18000×0.10000 0.0070x0.0040 47-52 1.720  0.352
      50×500 0.14000×0.11000 0.0055x0.0043 37-45 1.760  0.360
      80×700 0.10000×0.08000 0.0040x0.0030 24-26 1.320  0.270
      120×160 0.10000×0.06300 0.0040x0.0025 28-32 0.460  0.094
      120×400 0.10000×0.06300 0.0040x0.0025 37-43 0.700  0.143
      165×800 0.07100×0.05080 0.0028x0.0020 14-16 0.720  0.148
      165×1400 0.07100×0.04000 0.0028x0.0016 9-11 0.770  0.157
      200×600 0.06100x0.04600 0.0024x0.0018 19-21 0.500  0.103
      200×1400 0.07112x0.04064 0.0028x0.0016 5-6 0.830  0.170
      325×2300 0.03500×0.02500 0.0014x0.0010 2-3 0.460  0.094
      325×2300 0.03500×0.02500 0.0014x0.0010 2-3 0.460  0.094
          Special specifications can be customized upon customers' requirements

    • Reverse Dutch Weave

      This is produced in a reverse of the Dutch Weave wire arrangement, whereby finer warp wires are positioned tightly together and a thicker weft wire is woven in at set intervals.

      The cloth is mechanically strong with a high throughput and it performs particularly well in high pressure vertical and horizontal filter leaf applications where backwashing and filter cake removal are important.

      Mesh No.(warp/
      inch & weft/inch)      		 Wire dia.(mm)
      (warp & weft)      		 Wire dia.(inch)
      (warp & weft)      		 Fineness of
      Filtering(micron)      		 Weight
      (kg/square meter)      		 Weight
      (lb/square yard)
      48 × 10 0.500×0.500 0.0200x0.0200 330.00  3.63  0.742
      63 × 18 0.400×0.600 0.0160x0.0240 220.00  4.14  0.847
      72 × 15 0.500×0.500 0.0197x0.0197 210.00  5.44  1.112
      100 × 16 0.350×0.450 0.0140x0.0180 190.00  3.87  0.791
      107 × 20 0.229 x0.610 0.0090x0.0240 210.00  3.34  0.683
      128 × 36 0.200 x0.400 0.0080x0.0157 74.00  2.45  0.501
      130 × 30 0.200 x0.410 0.0080x0.0160 110.00  2.30  0.470
      132 × 16 0.320×0.450 0.0142x0.0177 170.00  4.24  0.867
      152 × 24 0.270 ×0.355 0.0106x0.0140 160.00  3.73  0.763
      160 × 17 0.270×0.450 0.0106x0.0177 160.00  2.02  0.413
      170 × 18 0.270×0.450 0.0106x0.0177 160.00  4.01  0.820
      175 × 50 0.150×0.300 0.0059x0.0118 130.00  2.00  0.409
      180 × 20 0.270×0.450 0.0106x0.0177 170.00  4.29  0.877
      200 × 40 0.170×0.270 0.0067x0.0106 120.00  2.17  0.444
      240 × 40 0.150×0.250 0.0060x0.0100 70.00  1.98  0.405
      260 × 40 0.150 x0.250 0.0060x0.0098 55.00  2.19  0.448
      325 × 39 0.150 x0.300 0.0059x0.0118 90.00  2.44  0.499
      290 × 75 0.150×0.200 0.0059x0.0080 35.00  2.49  0.509
      400 × 120 0.057×0.100 0.0022x0.0039 30.00  0.64  0.131
      615 × 102 0.040×0.110 0.0016x0.0043 27.00  0.56  0.115
      615 × 130 0.040×0.130 0.0016x0.0050 22.00  0.80  0.164
      720 × 150 0.036×0.100 0.0014x0.0039 17.00  0.61  0.125
                 Special specifications can be customized upon customers' requirements
  • Printing Specs

    Specification
    		 Mesh
    (inch)
    		 Weaving
    Type    		 Wire Diameter
    (um)    		 Aperture
    (um)    		 Open Area
    (%)    		 Thickness
    (um)    		 Calendered
    Thickness
    (um)    		 Theoretical
    Ink Volume
    (cm³/m²)
    SS40/160 40 Plain 160 475 56.0 300-320 Asorder 179.1
    SS60/120 60 Plain 120 303 51.3 230-245 Asorder 123.2
    SS60/230 60 Twill 230 193 20.8 450-465 Asorder 225.0
    SS80/190 80 Plain 90 228 52.0 175-180 Asorder 103.0
    SS80/170 80 Twill 170 147 21.5 330-345 Asorder 185.0
    SS100/100 100 Plain 100 154 36.8 195-205 Asorder 77.2
    SS100/120 100 Plain 120 134 27.8 230-245 Asorder 82.0
    SS120/80 120 Plain 80 132 39.0 155-165 Asorder 65.8
    SS150/60 150 Plain 60 109 41.7 115-124 Asorder 50.0
    SS165/45 165 Plain 45 109 50.1 88-93 Asorder 45.1
    SS200/40 200 Plain 40 87 46.9 82-84 Asorder 43.0
    SS200/53 200 Twill 53 74 34.0 106-110 Asorder 48.0
    SS230/35 230 Plain 35 75 46.7 72-76 50-67 37.0
    SS250/30 250 Plain 30 72 49.7 64-68 40-58 30.0
    SS270/35 270 Plain 35 59 39.4 76-80 58-70 30.0
    SS300/30 300 Plain 30 55 41.7 66-68 40-59 28.0
    SS300/40 300 Twill 40 45 28.0 86-88 70-82 43.0
    SS325/28 325 Plain 28 50 41.2 63-64 40-56 26.4
    SS325/23 325 Plain 23 55 49.8 49-53 37-41 25.4
    SS325/35 325 Twill 35 43 30.0 72-76 50-67 30.0
    SS350/25 350 Plain 25 48 43.0 52-54 41-50 18.7
    SS350/40 350 Twill 40 33 20.4 82-86 70-82 43.0
    SS400/23 400 Plain 23 41 40.7 50-54 35-48 19.0
    SS400/21 400 Plain 21 43 48.0 45-49 30-32 21.0
    SS400/18 400 Plain 18 46 51.3 36-40 28-30 20.0
    SS400/29 400 Twill 29 35 29.5 58-62 40-59 27.0
    SS500/21 500 Plain 21 30 35.0 43-48 28-30 17.0
    SS500/25 500 Twill 25 26 25.7 52-56 41-50 18.0
    SS635/18 635 Plain 18 22 30.0 36-40 23-29 15.0
    Remark:Theabovedataaretheoreticdata,forreferenceonly.Therewillbeaslightdifferencebetweendifferentbatches.

  • Standards

    ASTM A580/A580M-18

    　 Standard Specification for Stainless Steel Wire1

    ISO 9044:1999

    　 Industrial woven wire cloth — Technical requirements and testing

    ASTM E2016 - 15

    　 Standard Specification for Industrial Woven Wire Cloth1

    ASTM E2814 − 11

    　 Standard Guide for Industrial Woven Wire Filter Cloth1

  • Application

    Liquid-Solid Filtration

    Liquid-solid filtration is fundamental to industrial processes. For example, vertical and horizontal pressure leaf filters are used in the processing of food, edible oils, pharmaceuticals and chemicals. Plain Dutch weave and Reverse Plain Dutch weave are ideally suited for this application. They are robust and provide the flow rates required in most processes. AISI316L is the best recommended material.

    Polymer/Plastic Filtration

    Maishi offers a wide range of different mesh types for Polymer/plastic filters. From synthetic fibres to blown film, from polymer recycling to profile extrusions. we provide bespoke solutions to suit specific products.

    Food industrial

    Filter screen for oil, juice, beer, tea, milk, soybean, cookies etc.

    Disaeration filters

    Adopted with stainless steel sintered filter mesh to achieve solid-liquid separation, high filtration accuracy and long service life.

    Fluidised beds

    Good mechanical strength, abrasion resistance and excellent chemical properties. AISI316L is the best recommended material for fluidised beds.

    Mining

    Woven from pre-crimped wires, 65-Mn steel is very abrasive and corrosive, crimped wire offers stable structure and good strength. Prevent slippery,anti vibration, good elasticity and toughness.

    Dryers

    Generally use 12-20 mesh stainless steel mesh for dryers, High temperature, acid and alkali corrosion, smooth surface and High mechanical strength.

    Oil Filtration

    Oil filter is mainly used for oil production filtration with perfect performance of anti-acid, anti-alkali, temperature resistance, wear resistance and other characteristics.

    Nutsche filters

    MAISHI offers a wide range of different mesh types for Nutsche filters. It has long service life, excellent separation, defined flow rate, easy to clean features.

    Sintered Filter

    Stainless steel sintered filter can be made with one,two,three or five layers,the shape is available from sheets,discs and other shapes.

    Feature:1. Heat resistance, acid resistance and corrosion resistance and wear.

    2. Accurate and stable filtering rate.

    3. High mechanical strength.

    4. Easy to clean.

    5. Suitable for cutting, bending, stamping, drawing, welding and other processing conditions.

  • More Info

    Materials:

    Type 316

    The stainless steel printing mesh is made in Type 316 which is stabilized with the 2% molybdenum. It has perfect resisting quality to survive against corrosion as compared to the chromium and nickel made stainless steel. This material has a unique property of T-316 which is quite durable in use. There exists some mechanical properties in this type which has a fabricating uniqueness and it is similar to T-304.

    The T-316 wire mesh cloth woven has been used in chemical processing at the moment when the processing requires a better resisting capability against corrosion than normal chromium nickel types.

    Type 316 L

    The steel printing mesh is also formed in Type 316 L which is very common as T-316. The main difference in between them is that the reduced carbon material is produced in form of wire cloth weave. These products steel wire mesh and steel wire cloth are frequently used in petroleum industry. It is also providing favorable support in chemical industry and is providing various advantages in keeping environment safe. It is also providing its best assistance in mining, metallurgy, aeronautical space, paper manufacturing, electronics and many more.

    Uses: stainless steel screen printing mesh is apply to be used for platemaking printing, multi-colour printing, bulk printing, colour half-tone screen printing and precision printing etc.It is extensive to be used for printing of spinning, glass, ceramics, metal, plastic, rubber industry.

    Production process

    Maishi purchase raw materials from TISCO(Taiyuan Iron & Steel Co.,Ltd.), which is well known for good and stable quality.

    After recieing the materials, we will do through inspection: wire diameter checking, surface checking, tolerance checking, contents checking etc.

    We tested contents by XRF Analyzers( X-Ray Fluorescence) to make sure the raw materials are reliable.

    After materials quality confirmed, we will start beam-warping, put the wire on beam, draw the warp wire into heddle and reed.

    Debugging the machine (checking if it is running properly or not), then begin the trial weaving. The machine will be adjusted several times until get the qualified mesh.

    Immediate correction (repairing the machine, replacing the material) will be made if any quality problem discovered when adjusting the machine.

    After finishing production, we will do the final inspection., including mesh surface checking, length measurement, element content assured(%), quantity, weight per roll, etc.), and then cut the size according to the requirement from the customer.

    Packaging in standard ways or as customer’s specific requirements to ready for shipment.


    Raw material check Meterial preparation Finish dia.warping beam
    Length check Surface check Mesh weaving
    Packing Packing into box
    Material check Packing Packing into box



    Inspection process

    1. Firstly, the yarns will be inspected: tensile, roundness, surface and tolerance etc.
    2. When we finish weaving, we will inspect the big defects, such as sliding wires, yarn broken, warp yarn lost or weft yarn lost.
    3. If the mesh pass all the above inspections it will be sent to do the heat settlement department. After heat settle ment,
        the mesh will be taken to the final inspection: tensile strength, different colors, oil spots etc.
    4. At end, we rolling the mesh on paper tube or make packaging according to customer orders.

    FYI: All the inspections in above process are all according to ISO9044 standard.

    Product characteristic

    ① Low elongation, high tensile strength, alkali resistance, chemical resistance, wear resistance, moisture resistance is good, high temperature resistance.

    ② Antioxidantive, chemical reaction is small, high hardness, not easy to be deformated while using.
