Security Screen Mesh

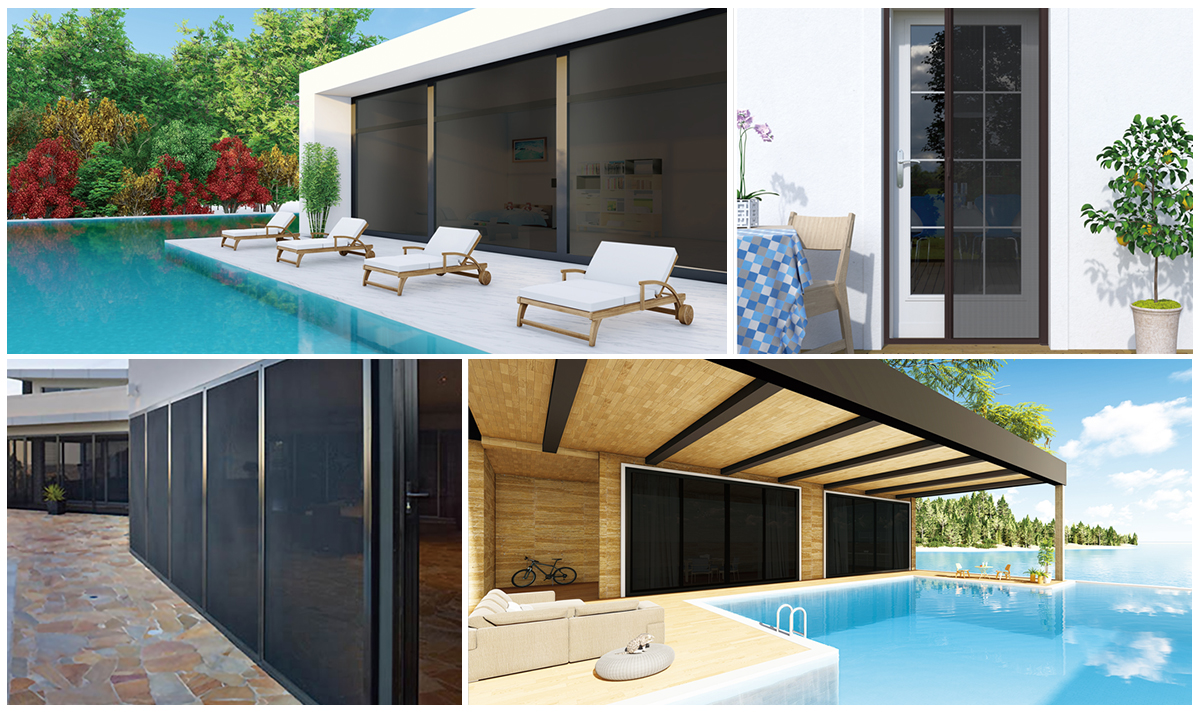

Security screen mesh is woven by stainless steel wire, widely used in windows and doors.

MAISHI is mainly producing it with material of 316 marine grade stainless steel.

Classified by tensile strength, we have two types for your choice:

- General tensile 316 marine grade stainless steel

- High tensile 316 marine grade stainless steel

Full Inspection

Full inspection for all the orders we manufacture

Clearly Tolerance

All the inspection tolerance is open to our clients

Perfect Service

Perfect service from pre-sale to after-sale

More About Security Screen Mesh

Click on the tabs below to learn more about Security Screen Mesh!

Material	MeshSize	HoleSize	SheetSize


High tensile 316 Marine grade stainless Akzo Nobel powder coating Color:blackonly	8meshx1.2mm	2.0mm	WidthxLength 750mmx2000mm/2400mm/3000mm/3500mm 900mmx2000mm/2400mm/3000mm/3500mm 1000mmx2000mm/2400mm/3000mm/3500mm 1200mmx2000mm/2400mm/3000mm/3500mm 1500mmx2000mm/2400mm/3000mm/3500mm
	9meshx1.0mm	1.8mm
	10meshx0.8mm	1.8mm
	10meshx0.9mm	1.6mm
	10meshx1.0mm	1.5mm
	11meshx0.8mm	1.5mm
	11meshx0.9mm	1.4mm
	12meshx0.7mm	1.4mm
	12meshx0.8mm	1.3mm
	12meshx0.9mm	1.2mm
	14meshx0.5mm	1.3mm
	14meshx0.55mm	1.2mm
	14meshx0.6mm	1.2mm
	18meshx0.32mm	1.0mm

316 Marinegrade stainless steel wire Akzo Nobel powder coating Color：blackonly	8meshx1.2mm	2.0mm	Width xLength 750mmx2000mm/2400mm/3000mm/3500mm 900mmx2000mm/2400mm/3000mm/3500mm 1000mmx2000mm/2400mm/3000mm/3500mm 1200mmx2000mm/2400mm/3000mm/3500mm 1500mmx2000mm/2400mm/3000mm/3500mm
	8meshx1.3mm	1.9mm
	9meshx0.9mm	1.9mm
	9meshx1.0mm	1.8mm
	10meshx0.9mm	1.6mm
	10meshx1.0mm	1.5mm
	11meshx0.8mm	1.5mm
	11meshx0.9mm	1.4mm
1.Sheet Size:Can be customized 2.Coating Color:Black/Gray/White 3.Packing:50 pcs per polywood box

Security Screen 0.9MM

Knife Shear Test
　 AS5039
Dynamic Impact Test
　 AS5039
Anti-Jemmy Test
　 AS5039
Pull Test
　 AS5039

1000 Hours Salt Spray Test
　 AS2331.3.1
Cyclone Rated
　 AS1170.2
Fire Attenuation
　 AS1530.4

Security Screen 0.8MM

Dynamic Impact Test
　 AS5039
Anti-Jemmy Test
　 AS5039
1000 Hours Salt Spray Test
　 AS2331.3.1

Fire Attenuation
　 AS1530.4
Pull Test
　 AS5039
Cyclone Rated
　 AS1170.2

Features And Benefits:

High tensile 316 marine grade stainless steel
Enjoy clear unobstructed views
Corrosion resistant
Prevent 99% of mosquitos passing through
10 years warranty
Fall prevention
True security against break-in
Fire prevention
Cyclonic impact protection

Why Choose MAISHI

MAISHI use 100% 316 grade stainless steel wire mesh

Stainless steel 316 grade has 10% to 14% nickle, which has very good resistance to corrosion and could be used in marine environment.

MAISHI offer beautiful mesh surface

MAISHI attach much importance to the good quality, and weave the mesh with straight wire, even hole size, flat surface, and exact mesh sizes.

MAISHI use the world top-class powder

MAISHI usually use AKZO NOBEL powder, the world first-class powder. It has strong attachment, and will not peel off or fade under the sun even after many years. MAISHI assure you 10 years warranty.
