Process: adopts the method of first bending and then weaving, which is divided into tight-locking weaving, two-way plain weaving, unidirectional corrugated weaving, bidirectional plane weaving, two-way corrugated weaving, rectangular hole weaving, oblique weaving; and it can also divided plain crimped , intermediate crimped, one-side crimped etc.

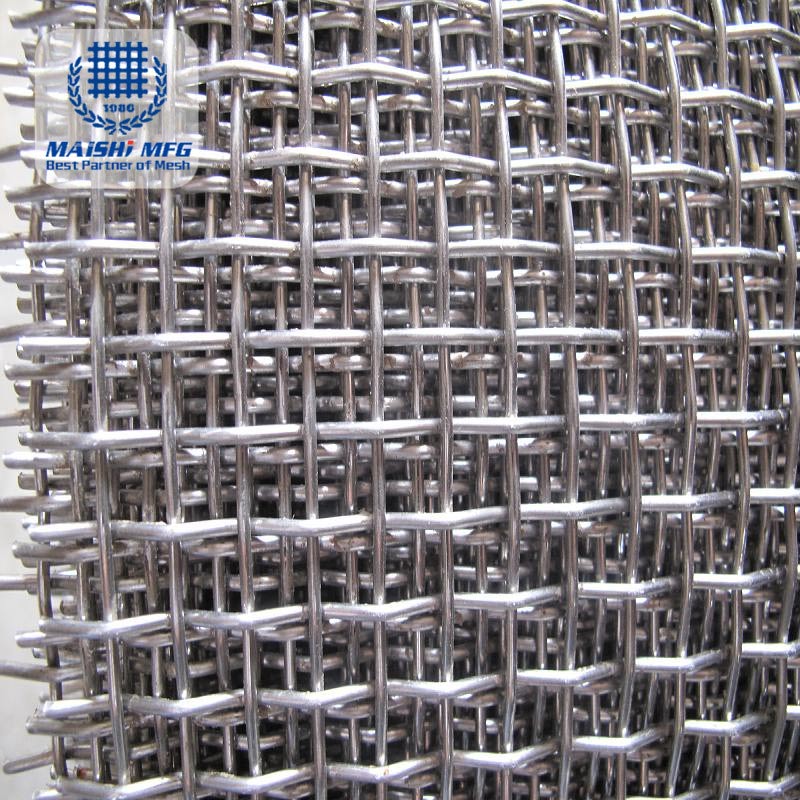

The process of crimped wire mesh

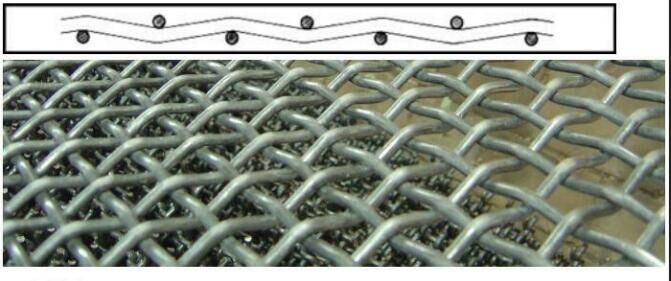

(1) Plain crimped weave: Also known as plain weave, the warp and weft crossings are bending points and is the most widely used weaving method.
(2) intermediate crimped: a weaving method of embossing between warp and weft.
(3) Embossed lock crimped: The warp and weft yarn are relatively fast, the mesh is uniform, the service life is long, and the upper and lower sides of the staggered portion are curved.
(4) One-side crimped: the warp and weft woven structure is flat, the force is uniform, and the wire mesh carrying capacity is improved.
Application
Widely used in coal, ore, mining, glass, petroleum, chemical, mechanical parts, solid material grading screening, liquid and mud filtration, breeding (pig net), urban construction (wall plastering), civil engineering and other industries. Also can be used as protective net, packaging net, barbecue net, barbecue net, hardware product net, craft net, vibrating screen, net basket net, wall net, grain, road, railway infrastructure, etc. The usage of crimped wire mesh is very widely.
